1500kg CQD15S-45 1.5T Multi-direction Seated Forklift triplex mast 6m

Ask Lasest Price
Brand Name :	YEAWEY
Model Number :	CQD15S-45
Certification :	CE ISO，SGS
Price :	6000-7500 usd
Payment Terms :	L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :	100 units per month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

1500kg CQD15S-45 1.5T Multi-direction Seated Forklift triplex mast 6m

Main information:

Model: CQD15S/ 20S

Load: 1500-20000KG

Lifting height: 3000-7500mm

Curtis controller

AC drive an lift motor

Wide angle view, high-strength shock absorption mast
American CURTIS brand drive control system
Zhongnan speed transmission
Electronic steering, portable, mute
Jindao brand low noise hydraulic pump and valve
Four way travel drive speed compensation
Electromagnetic regenerative braking system
High and low limit electrical overheat protection
Line fault detection error code diagnosis
Torch brand 48V high capacity lead-acid battery

Curve automatic deceleration device
Automatic deceleration of fork in high cargo position
Drive stepless speed regulation
Controller multiple automatic protection system
Emergency reverse anti-collision/ emergency braking device
Cylinder safety shut-off valve

Item	Model		CQD15S-45
1	Load capacity	Q(kg)	1500
2	Load center	C(mm)	500
3	Front overhang	X(mm)	210
4	Wheel base	Y(mm)	1600
5	Self weight with battery	kg	3500
6	Tire type		Pu solid tire
7	Front tire size	∅×w(mm)	φ267*114
8	Rear tire size	∅×w(mm)	φ382*142
9	Track width, front wheels	b10(mm)	1432
10	Height-Mast lowered	h1(mm)	2110
11	Free Lift Height	h2(mm)	1500
12	Lift Height	h3(mm)	4500
13	The maximum height of the gantry during homework	h4(mm)	5480
14	The height of overhead guards	h14(mm)	2280
15	The height when fork lowered	h13(mm)	35
16	Tilt-Forward/Back	α/β(°)	3/5
17	Overall length	l1(mm)	2490
18	Length of the body	l2(mm)	2080
19	Width of the body	b1(mm)	1682
20	Leg height	h5(mm)	390
21	Leg inner width	b12(mm)	932
22	Leg outer width	b11(mm)	1682
23	Fork Dimensions	s/e/l(mm)	35/100/1070
24	Fork Spread	b5(mm)	210-700
25	Reach distance	L(mm)	685
26	Min ground clearance	m2(mm)	70
27	Aisle Width,pallet 1000*1200mm	Ast(mm)	2690
28	Min. Turning radius	Wa(mm)	1916
29	Max travel speed unladen/Load	km/h	8/7
30	Max. lifting speed unladen/Load	m/s	0.250/0.240
31	Max. lowing speed unladen/Load	m/s	0.240/0.260
32	Grade Ability unladen/Load	％	≤10
33	Drive brake		electromagnetic
34	Drive motor	kw	6.5
35	Lift motor	kw	8.6
36	Battery type		Lead acid
37	Battery capacity	V/Ah	48V300Ah
38	Charger-intelligent	V/Ah	48V/40A
39	Drive Controll Type		alternating current
40	The noise level in the driver's ear according to EN12053	dB(A)	75

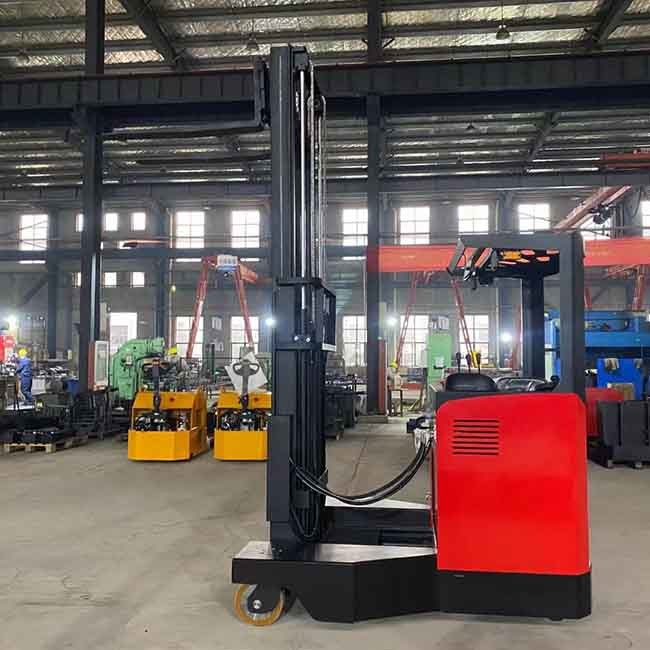

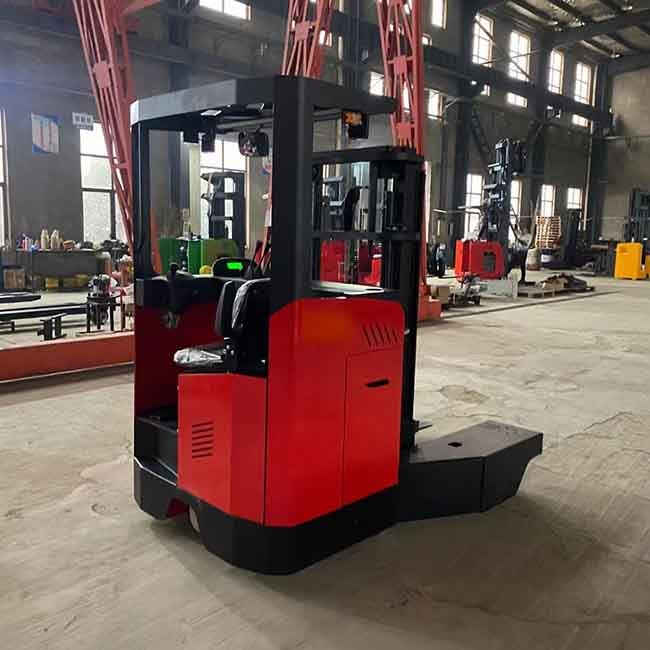

1500kg CQD15S-45 1.5T Multi-direction Seated Forklift triplex mast 6m
