2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m

Ask Lasest Price
Brand Name :	YEAWEY
Model Number :	CPDB20-25
Certification :	CE ISO，SGS
Price :	6000-7500 usd
Payment Terms :	L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :	100 units per month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

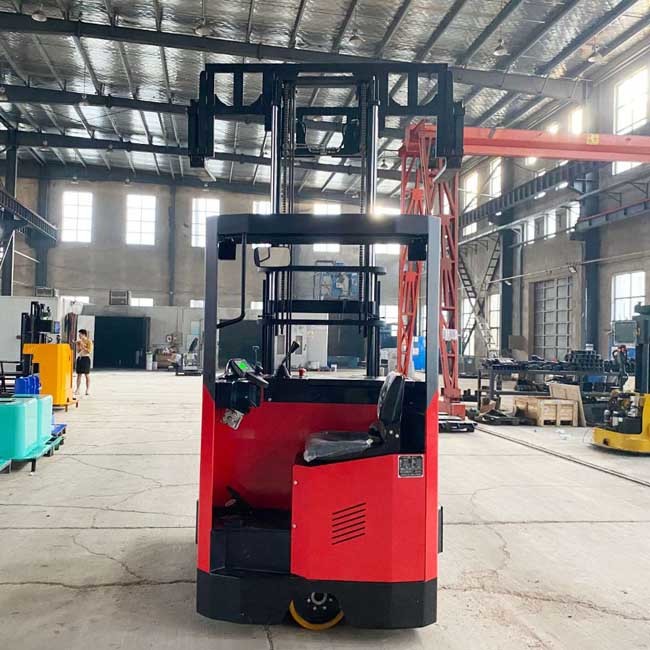

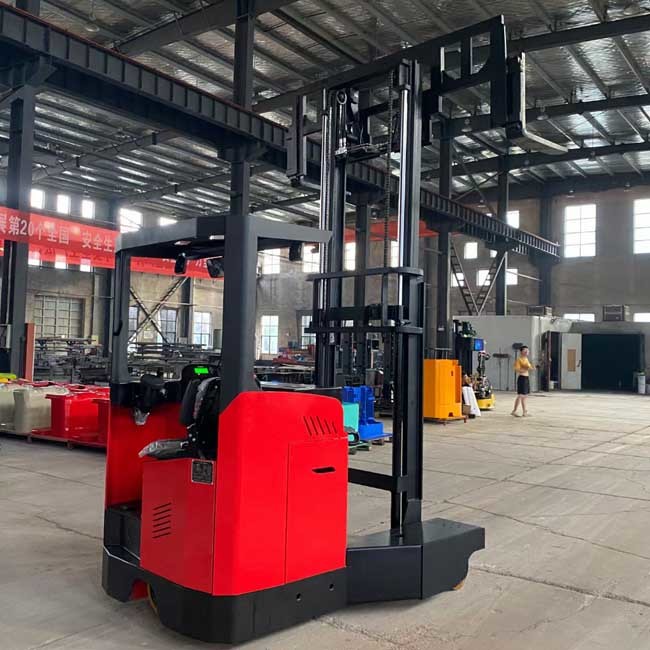

2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m

Main information:

Model: CQD15S/ 20S

Load: 1500-20000KG

Lifting height: 3000-7500mm

Curtis controller

AC drive an lift motor

Four-directional driving, used for narrow aisle stacking operation,saving storage area greatly, switching fast between straight and side lines, simple operation, quickly change direction, highefficiency and few failure rate.

Free maintenance of AC drive system, making the whole vehicle more responsive and accurate.

lmported controller, accurate control, simple setting of electrical control parameters, powerful function and low failure rate.

Stable operation, especially used for long shape material handling.

Real-time display of driving wheel angle makes it easy to fine turn the direction in narrow aisle, very safe, reasonable and accurate identification.

Large capacity special power battery with strong power, safe and reliable, convenient charging, long cycle life and low maintenance cost.

Item	Model		CQD25S-45
1	Load capacity	Q(kg)	2500
2	Load center	C(mm)	500
3	Front overhang	X(mm)	210
4	Wheel base	Y(mm)	1800
5	Self weight with battery	kg	4100
6	Tire type		Pu solid tire
7	Front tire size	∅×w(mm)	φ267*114
8	Rear tire size	∅×w(mm)	φ382*142
9	Track width, front wheels	b10(mm)	1432
10	Height-Mast lowered	h1(mm)	2360
11	Free Lift Height	h2(mm)	1500
12	Lift Height	h3(mm)	4500
13	The maximum height of the gantry during homework	h4(mm)	5480
14	The height of overhead guards	h14(mm)	2180
15	The height when fork lowered	h13(mm)	45
16	Tilt-Forward/Back	α/β(°)	3/5
17	Overall length	l1(mm)	2660
18	Length of the body	l2(mm)	2280
19	Width of the body	b1(mm)	1682
20	Leg height	h5(mm)	390
21	Leg inner width	b12(mm)	932
22	Leg outer width	b11(mm)	1682
23	Fork Dimensions	s/e/l(mm)	45/125/1070
24	Fork Spread	b5(mm)	260-700
25	Reach distance	L(mm)	720
26	Min ground clearance	m2(mm)	70
27	Aisle Width,pallet 1000*1200mm	Ast(mm)	2860
28	Min. Turning radius	Wa(mm)	2120
29	Max travel speed unladen/Load	km/h	8/7
30	Max. lifting speed unladen/Load	m/s	0.240/0.220
31	Max. lowing speed unladen/Load	m/s	0.240/0.260
32	Grade Ability unladen/Load	％	≤10
33	Drive brake		electromagnetic
34	Drive motor	kw	6.5
35	Lift motor	kw	8.6
36	Battery type		Lead acid
37	Battery capacity	V/Ah	48V400Ah
38	Charger-intelligent	V/Ah	48V/50A
39	Drive Controll Type		alternating current
40	The noise level in the driver's ear according to EN12053	dB(A)	75

2500kg CQD25S-45 2.5T Multi Direction Seated Forklift Triplex Mast 6m
