2000kg 3000kg QDD30C 3.0T Electric Tow Tractor (load bearing) standing type

Product Categories
Qingdao Yeaweyda Machinery Co., Ltd
Contact Now
    Buy cheap 2000kg 3000kg QDD30C 3.0T Electric Tow Tractor (load bearing) standing type from wholesalers

    Buy cheap 2000kg 3000kg QDD30C 3.0T Electric Tow Tractor (load bearing) standing type from wholesalers
    • Buy cheap 2000kg 3000kg QDD30C 3.0T Electric Tow Tractor (load bearing) standing type from wholesalers
    • Buy cheap 2000kg 3000kg QDD30C 3.0T Electric Tow Tractor (load bearing) standing type from wholesalers
    • Buy cheap 2000kg 3000kg QDD30C 3.0T Electric Tow Tractor (load bearing) standing type from wholesalers
    • Buy cheap 2000kg 3000kg QDD30C 3.0T Electric Tow Tractor (load bearing) standing type from wholesalers

    2000kg 3000kg QDD30C 3.0T Electric Tow Tractor (load bearing) standing type

    Ask Lasest Price
    Brand Name : YEAWEY
    Model Number : CQD16J
    Certification : CE ISO,SGS
    Price : 6000-7500 usd
    Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram
    Supply Ability : 100 units per month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

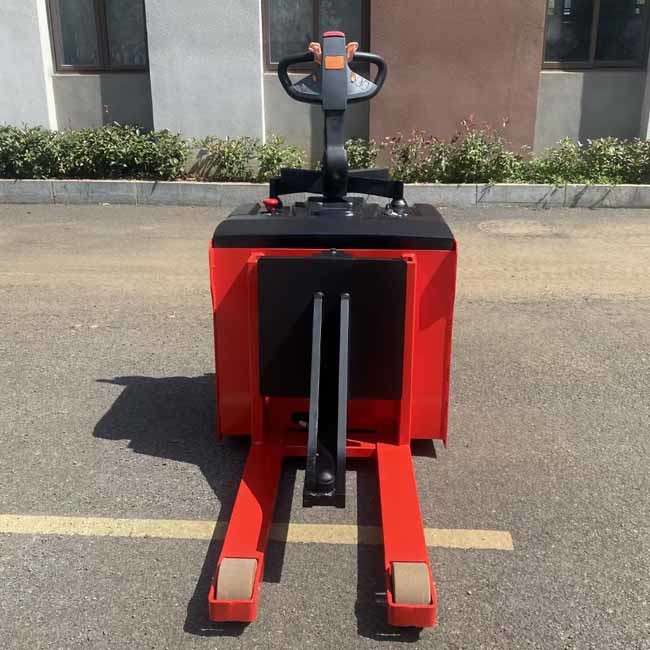

    2000kg 3000kg QDD30C 3.0T Electric Tow Tractor (load bearing) standing type

    Traction weight: 2000/3000KG


    YEAWEY Tow tractor usually used for material traction in airports, stations, workshops and warehouses. It also can used as an important transportation tool for baggage traction, regional logistics and workshop circulation.

    The truck is designed as compact structure, good maneuverability, and suitable for narrow-area operation. It's powerful, stable and reliable in operation.

    Rubber shock absorption are adopted for both front and rear axles, greatly improving the driving experience and effectively reducing the vehicle vibration on the operator.


    Advantage:

    • American CURTIS brand drive control system
    • Multifunctional integrated handle
    • Electronic steering, portable
    • Integrated brand low noise hydraulic pump
    • AC drive, brushless, motor maintenance free
    • Electromagnetic and regenerative braking system
    • Drive shock absorption system / pedal, handle shock absorption
    • Inductive proximity switch

    Safety:

    • Curve automatic deceleration device
    • Drive stepless speed regulation
    • Controller multiple automatic protection system
    • Emergency reverse anti-collision/ emergency braking device
    • Cylinder safety shut-off valve
    ItemNameElectric tow tractor
    1ModelQDD30C
    2Traction weightkg3000
    3Traction typeLoad bearing type
    4Max. lifting heightmm365
    5Height of bearing shaft head from the groundmm195
    6Tire configurationPolyurethane solid tire
    7Outside width of fork legmm560
    8Full length (including fork pedal retraction)mm1780
    9Overall widthmm850
    10Overall heightmm1500
    11Wheelbasemm1245
    12Turning radius (outer pedal retracted)mm1545
    13Max. driving speedkm/h4.0/5.0
    14Gradeability%5月8日
    15Total weightkg750
    16Drive wheelmmΦ230*75
    17Front wheelmmΦ150*90
    18Balance wheelmmΦ130*55
    19Battery capacityv/ah24/210
    20Battery chargerv/a24/30
    21Drive motorkw1.6
    22Lifting motorkw2.2
    23Travel speed regulation modeHall accelerator
