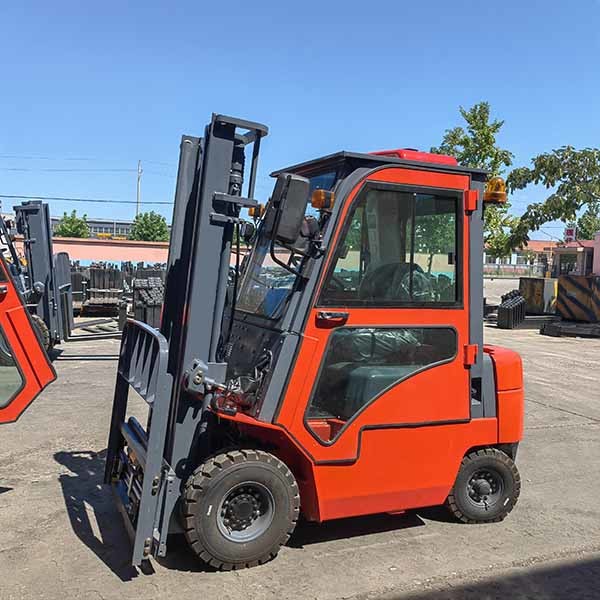

    4500mm Container Mast 1.5 T Diesel Counterbalance Cabin Air Conditioner

    Ask Lasest Price
    Brand Name : YEAWEY
    Model Number : CPCD15
    Certification : CE ISO
    Price : 6500-7500 usd
    Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram
    Supply Ability : 100 units per month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    4500mm Container Mast 1.5 T Diesel Counterbalance Cabin Air Conditioner

    Full free lift mast 1.5T diesel powered forklift cabin air conditioner


    Main information:

    Product name: 2.0Ton diesel counter balance forklift

    Engine: Chinese Xinchai C490BPG diesel engine

    Transmission: Mechanical

    Mast type: wide vide 3 stage mast 4.5m lifting height

    Tires: Pneumatic

    Fork: 1220mm

    Attachments: Sideshift


    The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.


    Working efficiency improved

    Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.


    Ergonomic comfort

    Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.


    Long working life

    I beam rails and heavy tie bar construction reduce twisting while handling long,lateral loads on rough surface applications. Sealed bearing load rollers and are externally adjustable to compensate for long term wear.


    Suspension Seat (Optional)

    Optional TOYOTA suspension seat with tilting and sliding adjustment absorbs vibrations, improving comfort and safety.


    Wide-angle Rear-View Mirror

    Provides more comprehensive rear viewfor enhanced safety.


    SpecificationCPC15
    1Fuel modelDiesel
    2Load capacitykg1500
    3Load centermm500
    4Lift heightmm4500
    5Full free lift heightmm1500
    6Fork dimensionmm920×100×35
    7Mast tilting angleDeg.6/12
    8Min.turning radiusmm1955
    9Groud clearancemm110
    10Overhead guard heightmm2040
    11Front overhangmm425
    12Max travel speedkm/h13.5
    13Max lift speedmm/s590
    14Max.traction powerKN12.3
    15Max. gradeability%20
    16Total length with forkmm3175
    17Total length without forkmm2255
    18Total widthmm1070
    19Mast extended heightmm4030
    20Mast lowered heightmm1995
    21Tyres Front6.50-10-10PR
    22Type Rear5.00-8-8PR
    23Wheelbasemm1410
    24Treadmm890/920
    25Service weightKg2800
    26BatteryV/Ah12/80
    27Engine model

    ISUZU C240

    28Engine powerkw/r.p.m34
    29TransmissionMechanical or Automatic
    30Work pressMpa18.5
