Brand Name : | YEAWEY |
Model Number : | CPD20 |
Certification : | CE ISO,SGS |
Price : | 4000-5000 usd |
Payment Terms : | L/C, T/T, D/P, D/A, Western Union, MoneyGram |
Supply Ability : | 100 units per month |
Delivery Time : | 15-20 working days |

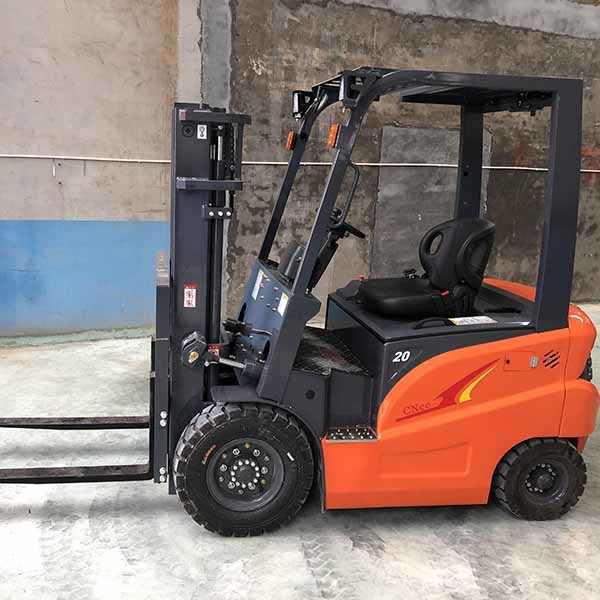

2000 kgs CPD20 2.0 Ton forklift battery acid AC motor 3 stage mast
Main information:
Load capacity: 2000kg*500mm

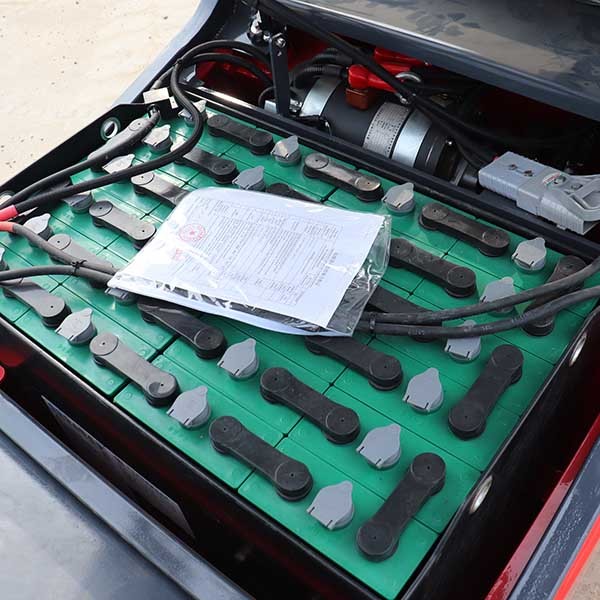

Lead acid battery 48V/300Ah
Chinese AC controller
AC lift motor and AC drive motor
Automatic transmission
3 stage 4.8m mast
Solid tires
Fork 1070mm
Attachments: according to customers' requirements.
ADVANTAGES
The design of Yeawey electric forklift is based on the original G
series with combination of the advantages to meet the light and
medium applications with great comfort and efficiency. The truck is
optional to equipped with either Lead-acid battery or Li-ion
battery. With lowered center of gravity and overhead guard, the
truck is ideal to be used in limited spaces such as entering
elevator.
Curtis controller
The trucks are equipped with Curtis controllers.CAN-bus technology
makes the diagnostic and trouble shooting easier.The use of proved
and certified components helps to ensure the conformity to
international safety standards with all the supporting documents
available as required by law.
AC maintenance-free drive motor
Adopt maintenance-free and powerful AC drive motor. Compared with
traditional DC motors, our AC motors do not need to replace Carbon
brushes. Equipped with speed sensor and temperature sensor, greatly
improving the AC motor’s reliability.
High performance transmission:
Transmission system uses a horizontal fan-shaped drive axle
arranged in parallel with a large transmission ratio. The battery
is installed at the bottom of the frame.Traveling motor adopts AC
maintenance-free motor.
Energy-saving and efficient
An efficient lift and travel motor together with a high speed ratio gearbox significantly improves the travel speed, gradeability and lifting speed;
The 80V high efficient motor system allows higher power density, and through deep matching of the gearbox, motors and electronic controls, reduces more energy consumption.
Comfortable experience

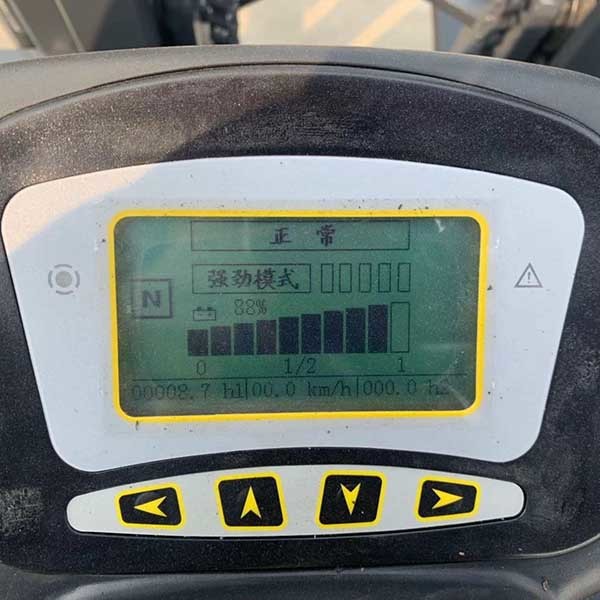

The forklift was ergonomically designed and it enables a wide view and a large operation space. The dashboard are designed to have clear and
intuitive graphic interfaces.
Control valve and brake button:
Front multi-way valve operating device makes operations more comfortable.
Electromagnetic brake button cut off power at one time,making brake safer and easier.
Warranty:
The warranty period is 24 months from on board date or 2000 working
hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2
working days.Besides that, we have experienced engineers to check
the problems and maintenance.
Delivery time:
As a factory, we can offer fast products delivery, standard
forklift is 7 working days, Forklift with options is 10-20 working
days.
Should you have any questions pls feel free to let us know.
Item | Model | CPD20 | |
1 | Power type | Battery | |
2 | Rated load | KG | 2000 |
3 | Load center distance | mm | 500 |
4 | Driving type | Seat | |
5 | Length With fork | mm | 3550 |
6 | Length Without fork | 2480 | |
7 | Whole Width | 1180 | |
8 | Height no lifting frame | 1995 | |
9 | Top frame height | 2210 | |
10 | Max Height working | 4100 | |
11 | Distance from seat to top light | 1070 | |
12 | Wheel base | 1650 | |
13 | Front overhang | 410 | |
14 | Back overhang | 420 | |
15 | Front wheel tread | 1000 | |
16 | Back wheel tread | 945 | |
17 | Min Floor clearance | 110 | |
18 | Max lifting height | 3000 | |
19 | Free lifting height | 150 | |
20 | Fork changing | 1040/200 | |
21 | Min Turning radius(outside) | 2285 | |
22 | Min Right angle aisle width | 3995 | |
23 | Frame angle (front/back) | (°) | 6/10 |
24 | Max lifting speed without goods | mm/s | 280 |
25 | Max lifting speed with full goods | 260 | |
26 | Max speed without goods | Km/h | 14 |
27 | Max speed with full goods | 13 | |
28 | Max climbing angle | % | 15 |
29 | Self weight | Kg | 3400 |
30 | Driving Wheel | 2/2 | |
31 | Tyre model | pneumatic tyre | |
32 | Front Tyre | 6.50-10 | |
33 | Rear Tyre | 18×7-8 | |
34 | Hand Brake | Hydraulic Pedal | |
35 | Brake type | M-Hand | |
36 | Lead aicd Battery Volt/ capacity | V/Ah | 48V/300 |
37 | Lithium Battery Volt/ capacity | V/Ah | 48V/206 |
38 | Driving motor power | Kw | 7.5 |
39 | Pump power | 10 |
![]() |
