2500 kgs CPD25KD 2.5 Ton lithium forklift Chinese FANJI controller duplex mast

Main information:

Load capacity: 2500kg*500mm

Lead acid battery 80V/235AH

Charger 80V/70A

Chinese FANJI controller

AC lift motor and AC drive motor

Automatic transmission

3 stage 4.5m mast

Pneumatic tires

Fork 1220mm

HK Series Electric Forklift Truck

With Lithium Power

HK series lithium battery forklifts are high quality products developed on the basis of the advantages of "High performance lithium battery system" and "Domestic and imported advanced controllers". The load capacity range is from 1.5Ton to 5.0Ton.

Following the family design of I.C. forklifts, they are provided with some key parts compatible with them, and optimized mainly on the overall performance, ergonomics, reliability, maintenance, outdoor operation ability and load capacity in a bid to meet customers’ different requirements.

Curtis controller

The trucks are equipped with Curtis controllers.CAN-bus technology makes the diagnostic and trouble shooting easier.The use of proved and certified components helps to ensure the conformity to international safety standards with all the supporting documents available as required by law.

AC maintenance-free drive motor

Adopt maintenance-free and powerful AC drive motor. Compared with traditional DC motors, our AC motors do not need to replace Carbon brushes. Equipped with speed sensor and temperature sensor, greatly improving the AC motor’s reliability.

High performance transmission:

Transmission system uses a horizontal fan-shaped drive axle arranged in parallel with a large transmission ratio. The battery is installed at the bottom of the frame.Traveling motor adopts AC maintenance-free motor.

Multi-function dashboard:

Multi-function display screen with fault alarm, low battery reminder. High, medium and low speed modes.

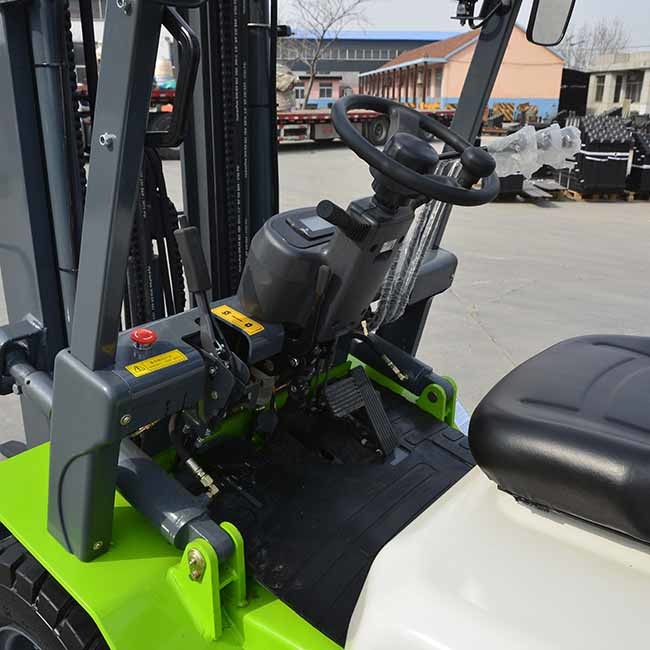

Adopt car control mode:

Suspended driving brake system, step-less speed change.Finding driving pleasure at work.

Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.

Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.

QINGDAO YEAWEYDA MACHINERY CO., LTD is one of major materials handling equipment manufacturer in China,focus on research development, production, sales and service of various machines.

We mainly manufactures diesel forklifts, gasoline forklifts, LPG/dual fuel forklifts, electric forklifts and warehouse handling equipment from 1.5Ton to 15 Ton load capacity.

A Cost-effective brand has won the recognition of more and more clients. YEAWEYDA endeavors to provide our customers with the optimal products and professional services.

We can give you professional suggestions on product selection, fault determination, daily maintenance, etc. Using YEAWEYDA machines will make your job easier and more efficient.
