    2 Stage 3m Mast Semi Electric Pallet Stacker 1T-2T Warehouse Pallet Jack

    Ask Lasest Price
    Brand Name : YEAWEY
    Model Number : CDD10A-CDD20A
    Certification : CE ISO,SGS
    Price : 6000-7500 usd
    Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram
    Supply Ability : 100 units per month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

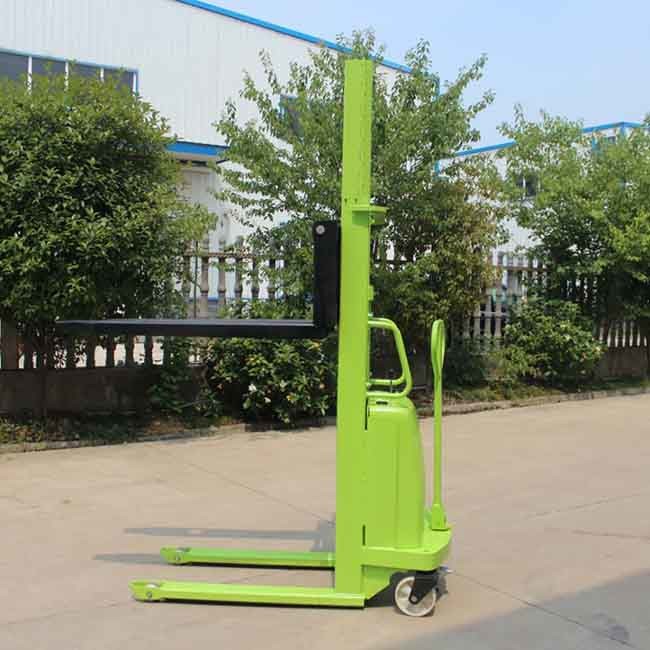

    2 Stage 3m Mast Semi Electric Pallet Stacker 1T-2T Warehouse Pallet Jack

    2 stage 3m mast 1-2Ton semi-electric stacker warehouse use lead acid battery

    Main information:
    Chinese DC controller
    12V/120Ah lead acid battery
    Mast type: 2 stage mast 3m lifting height
    Tires: PU solid
    Fork: 1150mm
    Attachments:

    • Hydraulic power unit structure is compact, responsiveand with strong power.
    • Body design is exquisite, flexible operation, and laboursaving impulse.
    • Built-in high-energy sealed battery, Long-term usewithout maintenance, so you don't need to add waterduring the period of life.
    • Foot brake operation is user-friendly.
    • Electricity meter is configured, so as to remind operatorschargetimely, and convenient to protect the battery.


    Warranty:
    The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
    During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.
    Delivery time:
    As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
    Should you have any questions pls feel free to let us know.

    ItemModelCDD10A-30CDD15A-25CDD20A-16
    1Power typeSemi electric
    2Drive modeWalkie Type
    3Load capacityQ(Kg)100015002000
    4Load centerC(mm)500500500
    5Wheel baseY(mm)128012801280
    6Self weight with batterykg402421502
    7Tire type Front /Rearnylon/nylonnylon/nylonnylon/nylon
    8Front tire size∅×w(mm)Φ80x70Φ80x70Φ80x70
    9Rear tire size∅×w(mm)Φ180x50Φ180x50Φ180x50
    10Track width, front wheelsb2(mm)520520520
    11Track width, rear wheelsb3(mm)693693693
    12Height-Mast LoweredH1(mm)208018302080
    13Lift HeightH(mm)300025001600
    14Maximum height when fork is liftingH2(mm)342929292080
    15Min.Fork heightH3(mm)858585
    16Overall lengthL(mm)180018001800
    17Overall widthb1(mm)775775775
    18Fork dimensionss/e/l(mm)65/160/115065/160/115065/190/1150
    19Forks Spreadb5(mm)680680710
    20Min ground clearancem2(mm)252525
    21Min. stacking aisle 1000*1200 pallet(1200 cross fork placement)Ast(mm)226722672267
    22Min. stacking aisle 1000*1200 pallet(1200 placed along forks)Ast(mm)238623862386
    23Min. Turning radiusWa(mm)140514051405
    24Max. lifting speedm/s0.112/0.0920.112/0.0900.112/0.085
    25Max. lowing speedm/s0.108/0.1200.108/0.1230.108/0.125
    26Drive brakemachinerymachinerymachinery
    27Lifting motorkw1.61.62
    28Battery typelead acid battery
    29Battery capacityV/Ah12/12012/12012/120
    30ChargerV/Ah12V/15A12V/15A12V/15A
    31DriveControllingTypemachinerymachinerymachinery
    32The noise level in the driver's ear according to EN12053dB(A)707070
