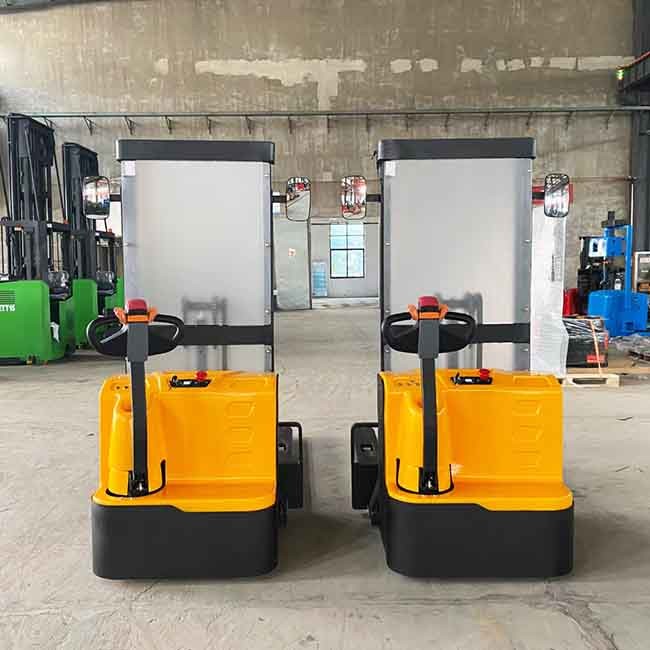

    Warehouse Battery Powered Pallet Stacker 1T Electric Walkie Stacker

    Ask Lasest Price
    Brand Name : YEAWEY
    Model Number : CDD10
    Certification : CE ISO,SGS
    Price : 6000-7500 usd
    Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram
    Supply Ability : 100 units per month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Warehouse Battery Powered Pallet Stacker 1T Electric Walkie Stacker

    2 stage walkie 1Ton electric stacker warehouse use lithium battery

    Main information:
    Chinese AC controller
    2X12V/80Ah lead acid battery forklift
    Mast type: 2 stage mast
    Lift height: 1600-3000mm
    Tires: Solid
    Fork: 1150mm

    The YEAWEY walkie stackers are tailored towards pedestrian controlled stacking operations with capacities from 1200kg up to 2000kg.
    With the mounted long tiller the operator can keep a safe and ergonomic distance while performing his work.
    Due to the gentle full proportional lift system, stacking operations becomes safer and faster.
    With high quality and state of the art top brand components and technology, the truck competes with other leading brands in the market.

    Multi functional handle, integrated with key switch, upright walking button, LCD screen (battery level, working time, fault display), optional turtle speed, simple and comfortable operation;

    ItemModelCDDC10-16CDDC10-30
    1Power typeElectricElectric
    2Drive modeWalkie TypeWalkie Type
    3Load capacityQ(Kg)10001000
    4Load centerC(mm)500500
    5Wheel baseY(mm)11971197
    6Self weight with batterykg506566
    7Axle load at full load, drive end/bearing endkg711/1294732/1344
    8Axle load when unloaded, drive end/bearing endkg368/138411/155
    9Tire type Front/RearPu solid tirePu solid tire
    10Front tire size∅×w(mm)Φ80x70Φ80x70
    11Rear tire size∅×w(mm)Φ210x70Φ210x70
    12Track width, front wheelsb10(mm)515515
    13Track width, rear wheelsb11(mm)530530
    14Height-Mast Loweredh1(mm)20551980
    15Lift Heighth3(mm)16003000
    16Maximum height when fork is liftingh4(mm)20753478
    17Min. Fork heighth13(mm)8585
    18Overall lengthl2(mm)18581865
    19Overall widthb1(mm)800800
    20Fork sizes/e/l(mm)65/165/115065/165/1150
    21Width over forkb5(mm)350/680350/680
    22Min ground clearancem2(mm)2525
    23Min. stacking aisle 1000*1200 pallet(1200 cross fork placement)Ast(mm)22382238
    24Min. Turning radiusWa(mm)13801380
    25Max.walking speedkm/h4/3.54/3.5
    26Max. lifting speedm/s0.101/0.0950.101/0.095
    27Max. lowing speedm/s0.111/0.1250.111/0.125
    28GradeAbility6/36/3
    29Drive brakeElectromagneticElectromagnetic
    30Drive motorkw0.750.75
    31Lift motorkw2.22.2
    32Battery typeLead acidLead acid
    33Battery capacityV/Ah2x12/802x12/80
    34ChargerV/A24V/10A24V/10A
    35DriveControllingTypeDCDC
    36The noise level in the driver's ear according to EN12053dB(A)7575
