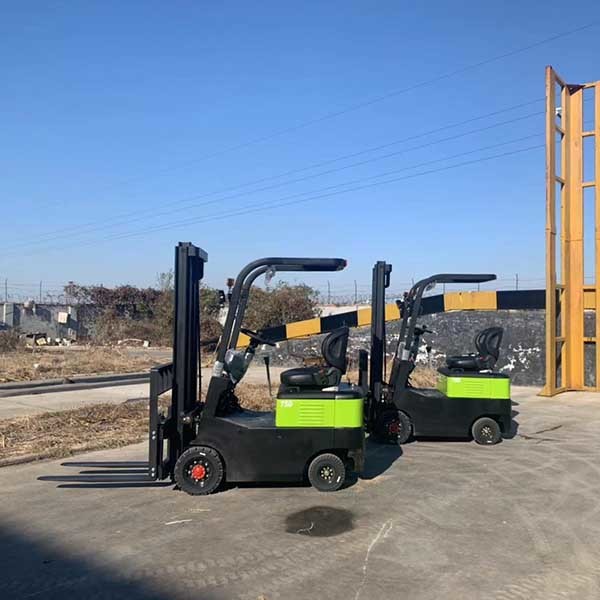

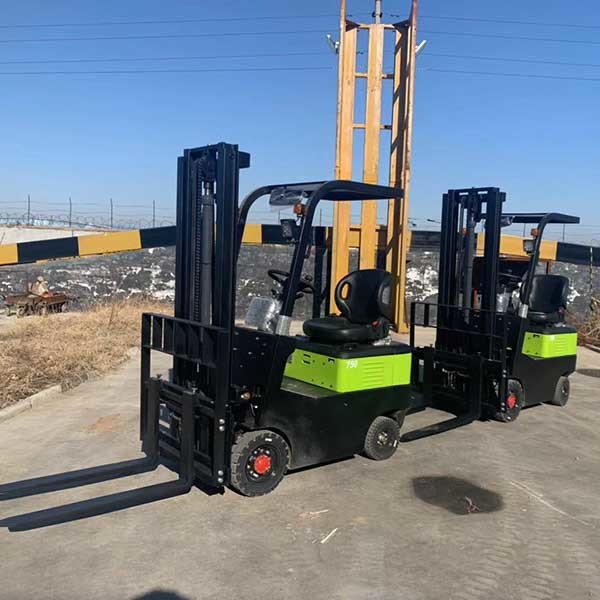

750kg CPD075 0.75 T electric forklift truck double front wheels orange color

Main information:

Load capacity: 750kg*500mm

Lead acid battery 48V/140Ah

Chinese AC controller

AC lift motor and AC drive motor

Automatic transmission

2 stage 2.5m mast

Pneumatic tires

Fork 1220mm

Attachments: according to customers' requirements.

ADVANTAGES

The design of Yeawey electric forklift is based on the original G series with combination of the advantages to meet the light and medium applications with great comfort and efficiency. The truck is optional to equipped with either Lead-acid battery or Li-ion battery. With lowered center of gravity and overhead guard, the truck is ideal to be used in limited spaces such as entering elevator.

Curtis controller

The trucks are equipped with Curtis controllers.CAN-bus technology makes the diagnostic and trouble shooting easier.The use of proved and certified components helps to ensure the conformity to international safety standards with all the supporting documents available as required by law.

AC maintenance-free drive motor

Adopt maintenance-free and powerful AC drive motor. Compared with traditional DC motors, our AC motors do not need to replace Carbon brushes. Equipped with speed sensor and temperature sensor, greatly improving the AC motor’s reliability.

High performance transmission:

Transmission system uses a horizontal fan-shaped drive axle arranged in parallel with a large transmission ratio. The battery is installed at the bottom of the frame.Traveling motor adopts AC maintenance-free motor.

Quite low vibration design

The hydraulic system uses a low-noise gear pump and full hydraulic power steering. Quiet and comfortable operation. Shock absorbing steer axle to protect the vehicle system and prolong the service life of the forklift.

Light system:

The forklift is equipped with standard LED lamps: head-lamps,front turn lamps, rear combination lamps, warning lamps. Bright light with low power consumption allows you to operate freely at night.

QINGDAO YEAWEYDA MACHINERY CO., LTD is one of major materials handling equipment manufacturer in China,focus on research development, production, sales and service of various machines.

We mainly manufactures diesel forklifts, gasoline forklifts, LPG/dual fuel forklifts, electric forklifts and warehouse handling equipment from 1.5Ton to 15 Ton load capacity.

A Cost-effective brand has won the recognition of more and more clients. YEAWEYDA endeavors to provide our customers with the optimal products and professional services.

We can give you professional suggestions on product selection, fault determination, daily maintenance, etc. Using YEAWEYDA machines will make your job easier and more efficient.
