    8000kgs FD80 Diesel Fork Truck Japanese Engine 8 Ton Forklift

    Ask Lasest Price
    Brand Name : YEAWEY
    Model Number : FD80
    Certification : CE ISO,SGS
    Price : 8000-10000 usd
    Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram
    Supply Ability : 100 units per month
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

    8000kgs FD80 Diesel Fork Truck Japanese Engine 8 Ton Forklift

    8000kgs FD80 8 ton diesel lift truck Japanese engine closed cabin heater


    Main information:

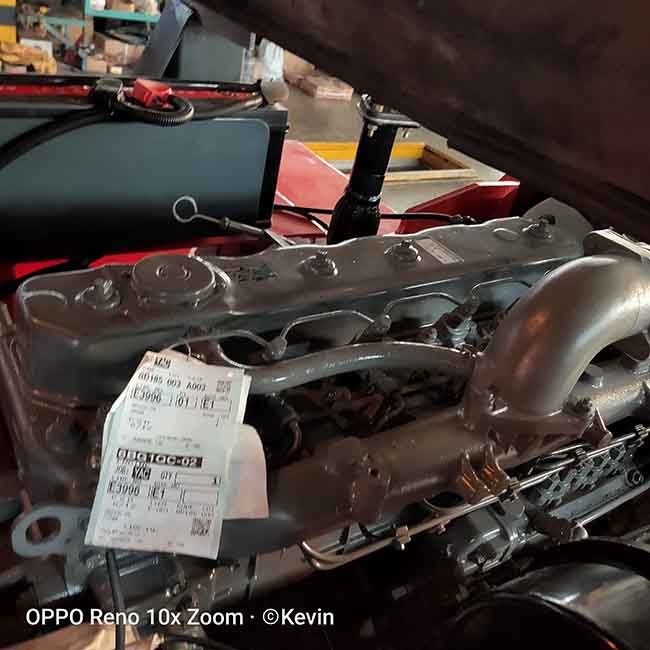

    Engine: ISUZU 6BG1 diesel engine
    Transmission: Automatic
    Mast type: Duplex 4m mast wide view
    Tires: pneumatic
    Fork: 1520mm
    Attachments: sideshift


    The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.

    Working efficiency improved

    Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.


    Ergonomic comfort

    Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.


    Operator's view improved

    A clear view to the forks and surrounding area is optimized through the Maximal wide view mast.Excellent rearwards visibility is enhanced with the sloping rear counterweight and fenders.The dash and LED monitor panel is mounted low and in line of sight for operator convenience.


    Clear, Concise & Modern Design

    Yeawey forklift design has adopted the streamline design of the Maximal A Series forklifts.The appearance is clear and concise with a very modern forklift design.


    Hydraulic system improved

    The constant displacement pump load sensing steering system increases the lifting speed and reduces the hydraulic oil temperature.


    Full Hydraulic Steering System

    Offer lighter, more flexible steering, with reduced turning radius and handles driving large vehicle like a small vehicle.


    SpecificationCPCD80
    1Fuel modelDiesel
    2Load capacitykg8000
    3Load centermm600
    4Lift heightmm4000
    5Full free lift heightmm200
    6Fork dimensionmm1520×150×65
    7Mast tilting angleDeg.6/12
    8Min.turning radiusmm3580
    9Groud clearancemm200
    10Overhead guard heightmm2460
    11Front overhangmm590
    12Max travel speedkm/h29
    13Max lift speedmm/s500
    14Max.traction powerKN53
    15Max. gradeability%20
    16Total length with forkmm5000
    17Total length without forkmm3780
    18Total widthmm1995
    19Mast extended heightmm4420
    20Mast lowered heightmm2625
    21Tyres Front8.25-15-14PR
    22Type Rear8.25-15-14PR
    23Wheelbasemm2450
    24Treadmm1470/1700
    25Service weightKg9880
    26BatteryV/Ah(12/80)x2
    27Engine modelISUZU 6BG1 diesel engine
    28Engine powerkw/r.p.m82.4
    29TransmissionAutomatic
    30Work pressMpa20
