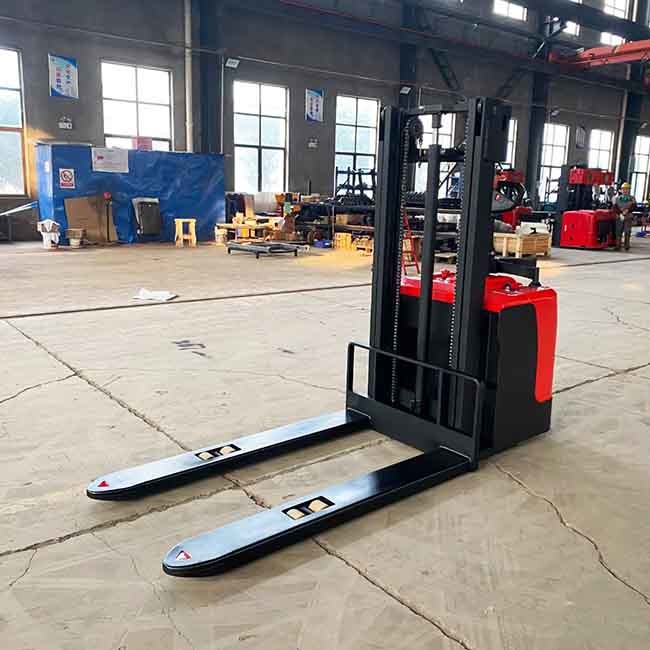

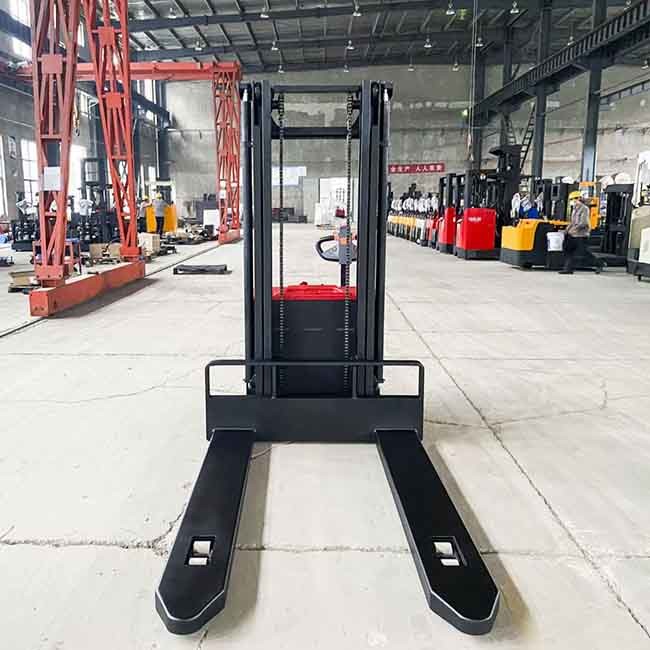

2 Stage 1.6m Mast Counterbalanced Electric Stacker Standing Type 1T

2 stage 1.6m mast 1Ton electric stacker warehouse use standing type

Main information:
Chinese AC controller, AC motors
2*12V/80Ah lead acid battery forklift
Mast type: 2 stage mast
Lift height: 3000mm
Fork: 1200mm

YEAWEY electric stacker is more adoptable to complex ground and not easy to slip. The fixed balance wheel on both side enhances the stability and pass ability of the truck.

Driving wheel with pressure adjustable structure, is more practical for different application scenarios and vehicle weights.

Driving wheel floating technology, combined with foldable platform floating structure, makes the truck higher effective in shock absorption and more comfortable in operation.

Strong chassis

The chassis structure is strong, the distribution of the center of mass is reasonable, and the stability of the whole vehicle is excellent.

Energy efficient.

High-speed lifting and lowering control improves your work efficiency.It adopts AC drive motor, hydraulic pump motor and steering motor, with long life, maintenance-free and reliable performance. All lights use LED, durable and energy-saving.

Item	Model		CDD10II-30
1	Power type		Fully electric
2	Drive mode		Standing Type
3	Load capacity	Q(Kg)	1000
4	Load center	C(mm)	500
5	Wheel base	Y(mm)	1430
6	Self weight with battery	kg	1075
7	Tire type Front/Rear		Pu solid tire
8	Front tire size	∅×w(mm)	Φ80x70
9	Rear tire size	∅×w(mm)	Φ230x75
10	Track width, front wheels	b2(mm)	490
11	Track width, rear wheels	b3(mm)	658
12	Height-Mast Lowered	h(mm)	2060
13	Lift Height	h1(mm)	3000
14	Maximum height when fork is lifting	h2(mm)	3541
15	Handle Height	h5(mm)	1430
16	Min. Fork height	h3(mm)	85
17	Overall length Pedal Closed/open	L(mm)	2185/2605
18	Overall width	b1(mm)	850
19	Fork size	s/e/l(mm)	65/190/1150
20	Width over fork	b5(mm)	680
21	Min ground clearance	m2(mm)	30
22	Min. stacking aisle 1000*1200 pallet(1200 cross fork placement)	Ast(mm)	2615
23	Min. stacking aisle 1000*1200 pallet(1200 placed along forks)	Ast(mm)	3016
24	Min Turning Radius When Pedal Closed	Wa(mm)	1729/2130
25	Max.walking speed	km/h	5.5/5
26	Max. lifting speed	m/s	0.1/0.1
27	Max. lowing speed	m/s	0.082/0.112
28	GradeAbility	％	8/6
29	Drive brake		Electromagnetic
30	Drive motor	kw	1.5
31	Lift motor	kw	2.2
32	Battery type		Lead acid battery
33	Battery capacity	V/Ah	24/210
34	Charger	V/A	24/30
35	DriveControllingType		alternating current
36	The noise level in the driver's ear according to EN12053	dB(A)	75
