Very Narrow Aisle VNA Forklift Truck 1500kg CSD15S 1.5T 3 Way

Ask Lasest Price
Brand Name :	YEAWEY
Model Number :	CSD15
Certification :	CE ISO，SGS
Price :	6000-7500 usd
Payment Terms :	L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :	100 units per month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

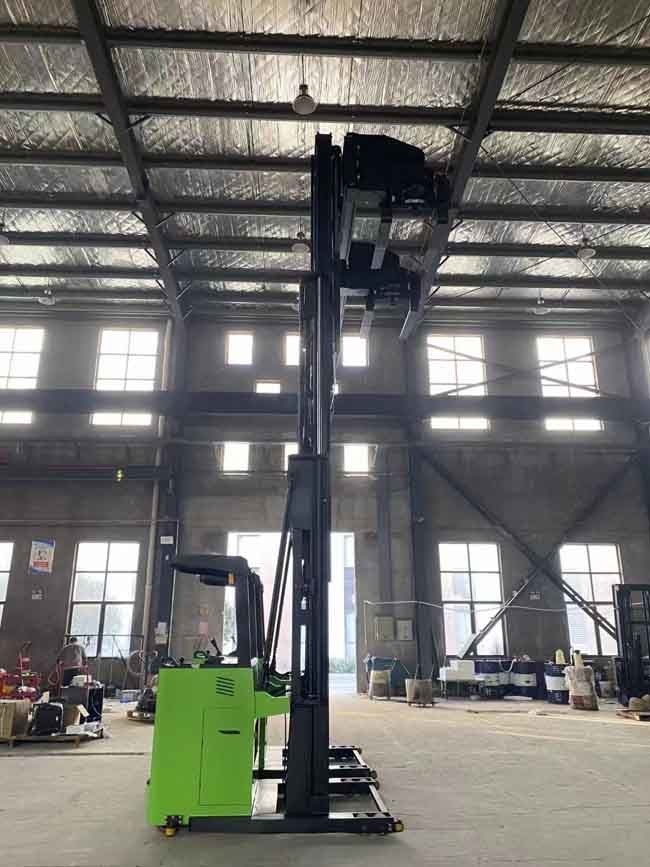

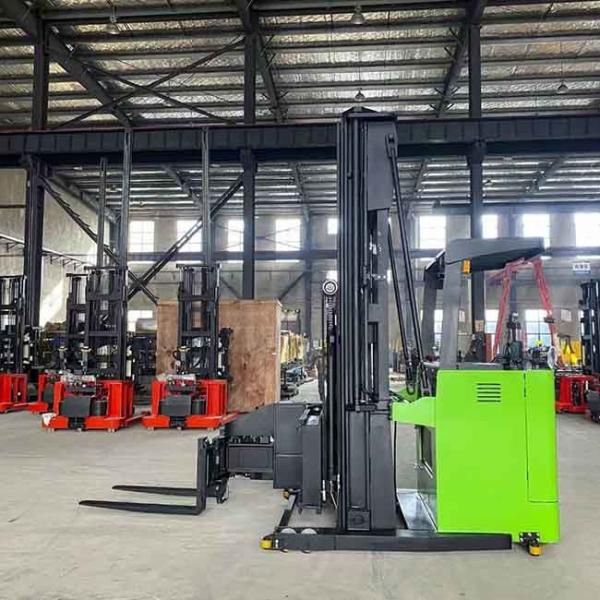

Very Narrow Aisle VNA Forklift Truck 1500kg CSD15S 1.5T 3 Way

1500kg CSD15S 1.5T 3 way Very Narrow Aisle(VNA) Forklift seated type Triplex mast 3m to 9m

Main information:

Curtis controller

AC lift and drive motor

Lift height 3m to 4.5m

Lead acid or lithium battery

Seated type

The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.

Advantage:

Wide angle view, high-strength shock absorption gantry
American CURTIS brand drive control system
Minimum 1480mm stacking channel, special for narrow roadway
Electronic steering, portable, mute
multi function instrument, drive wheel position display
Electromagnetic and regenerative braking system
fork rotation angle 180 °, left and right side shift
Line fault detection error code diagnosis
48V high capacity lead-acid battery
automatic alignment and guidance during walking

Powerful high quality AC drive system, EPS-Electric Power Steering system, Electronic multiple-way valve

Multi-function Display: parking brake, the drivingdirection and speed, the hour meter and the fault code

Big capacity battery1700mm aisle width, high suspension seat

German ZF gearbox, adjustable steering wheel

Side extraction battery

Optional magnetic navigation

Item	Model		CSD15S
1	Power type		Electric
2	Drive mode		Steated
3	Load capacity	Q(kg)	1500
4	Load center	C(mm)	600
5	Self weight with battery	kg	<6500
6	Tire type		Pu solid tire
7	Real tire size	∅×w(mm)	Ф400*160
8	Front tire size	∅×w(mm)	Ф145*100
9	Track width, front wheels	b10(mm)	1315
10	Height-Mast lowered	h1(mm)	3165
11	Free Lift Height	h2(mm)	1980
12	Lift Height	h3(mm)	6000
13	The maximum height of the gantry during homework	h4(mm)	7185
14	The height of overhead guards	h14(mm)	2180
15	Length (fork rotates on both sides)	l2(mm)	2960
16	Width of the body	b1(mm)	1567
17	Width of anti-collision guard rail	(mm)	1617
18	Fork Dimensions	s/e/l(mm)	45/125/1220
19	Fork Spread	b5(mm)	260-650
20	Min. Turning radius	m2(mm)	32
21	Channel guide width	Ast(mm)	1760(1000*1200 pallet)
22	Channel guide height	(mm)	120
23	Min. Turning radius	Wa(mm)	1989
24	Main channel width	mm	3560
25	Max travel speed unladen/Load	km/h	8/7
26	Max. lifting speed unladen/Load	m/s	0.275/0.215
27	Max. lowing speed unladen/Load	m/s	0.195/0.280
28	Drive brake		electromagnetic
29	Drive motor	kw	8 AC
30	Lift motor	kw	8.6 AC
31	Battery type		Lead acid
32	Battery capacity	V/Ah	48V/400Ah
33	Drive Controll Type		alternating current

Very Narrow Aisle VNA Forklift Truck 1500kg CSD15S 1.5T 3 Way
