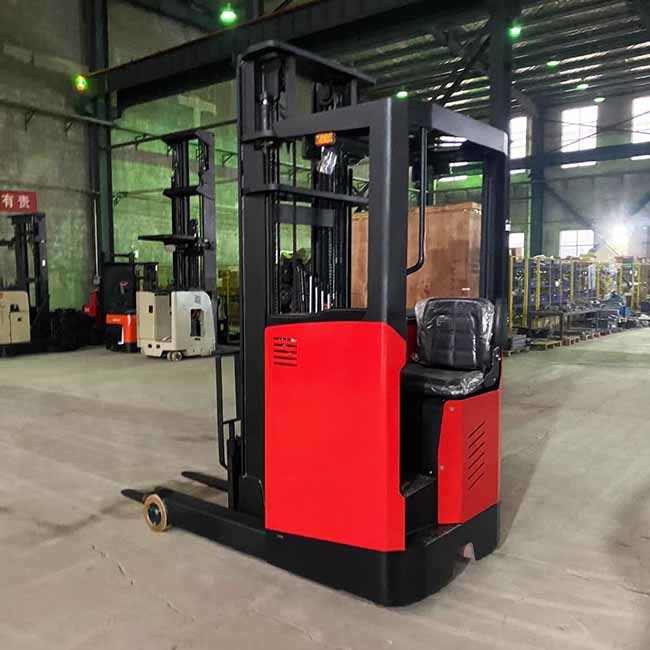

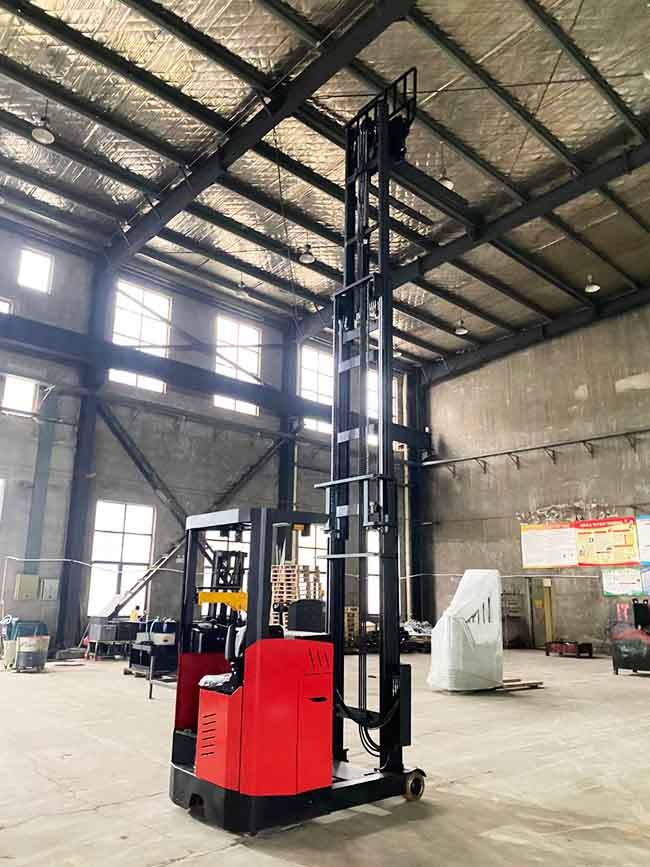

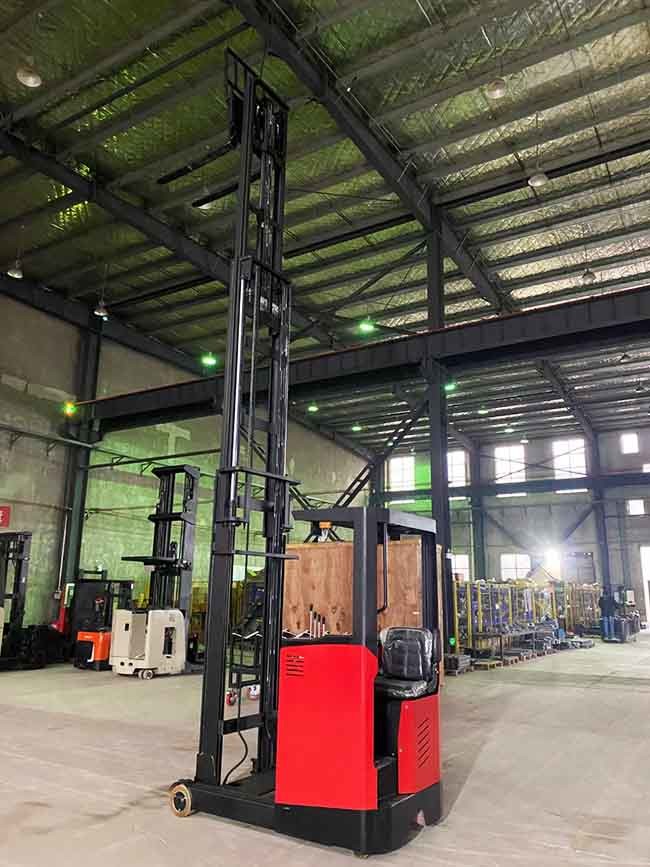

1.5T Electric Reach Truck Forklift CQD15B Stand Type Triplex 6m Mast

Ask Lasest Price
Brand Name :	YEAWEY
Model Number :	CQD15B
Certification :	CE ISO，SGS
Price :	6000-7500 usd
Payment Terms :	L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :	100 units per month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

1.5T Electric Reach Truck Forklift CQD15B Stand Type Triplex 6m Mast

1500kg 24V CQD15B 1.5T Electric Reach stacker stand type triplex 6m mast

Main information:

Curtis AC controller

AC lift and drive motor

Lift height 3m to 9m

Lead acid battery 24V/280AH

Stand type

The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.

Strong chassis

The chassis structure is strong, the distribution of the center of mass is reasonable, and the stability of the whole vehicle is excellent.

Height limit function

When the fork is lifted to the maximum height, the lifting motor will automatically power off to ensure the safety of lifting.

Motor current detection control

Prevent the motor from being damaged due to excessive motor current.

Item	Model		CQD15D-45S
1	Power type		Electric
2	Drive mode		Stead type
3	Load capacity	Q(kg)	1500
4	Load center	C(mm)	500
5	Front overhang	X(mm)	145
6	Wheel base	Y(mm)	1399
7	Self weight with battery	kg	2200
8	Tire type		Pu solid tire
9	Front tire size	∅×w(mm)	254*104
10	Rear tire size	∅×w(mm)	230*75
11	Balance wheel size	∅×w(mm)	150*50
12	Track width, front wheels	b10(mm)	978
13	Track width, Rear wheels	b11(mm)	804
14	Height-Mast lowered	h1(mm)	2120
15	Lift Height	h3(mm)	4500
16	The maximum height of the gantry during homework	h4(mm)	5485
17	The height of overhead guards	h14(mm)	2308
18	The height when fork lowered	h13(mm)	35
19	Tilt-Forward/Back	α/β(°)	3/5
20	Overall length	l1(mm)	2272
21	Length of the body	l2(mm)	1703
22	Width of the body	b1(mm)	1098
23	Fork Dimensions	s/e/l(mm)	35/100/1070
24	Fork Spread	b5(mm)	210-705
25	Reach distance	L(mm)	500
26	Min ground clearance	m2(mm)	77
27	Aisle Width,pallet 1000*1200mm	Ast(mm)	2771
28	Min. Turning radius	Wa(mm)	1600
29	Max travel speed unladen/Load	km/h	5/4
30	Max. lifting speed unladen/Load	m/s	0.135/0.110
31	Max. lowing speed unladen/Load	m/s	0.085/0.132
32	Grade Ability unladen/Load	％	8/4
33	Drive brake		electromagnetic
34	Drive motor	kw	2.5
35	Lift motor	kw	3
36	Battery type		Lead acid
37	Battery capacity	V/Ah	24V280Ah
38	Charger-intelligent	V/A	24V/40A
39	Drive Controll Type		alternating current
40	The noise level in the driver's ear according to EN12053	dB(A)	75
