CQD30BS 3.0T Reach Pallet Stacker 3000kgs 48V Reach Fork Truck

Ask Lasest Price
Brand Name :	YEAWEY
Model Number :	CQD30BS
Certification :	CE ISO，SGS
Price :	6000-7500 usd
Payment Terms :	L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :	100 units per month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

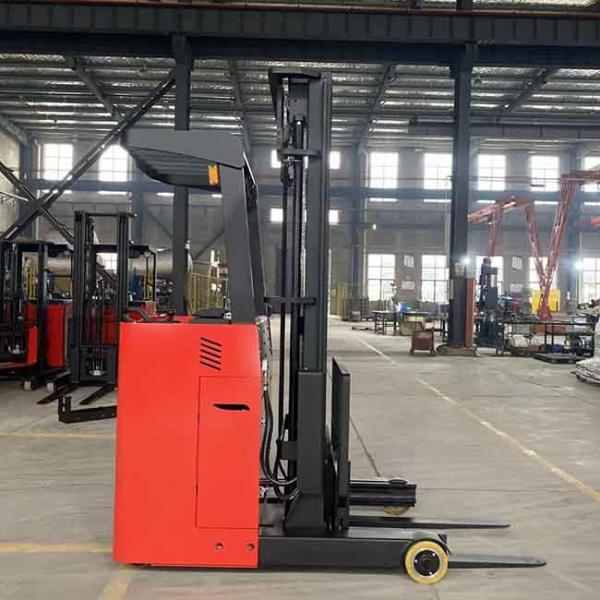

CQD30BS 3.0T Reach Pallet Stacker 3000kgs 48V Reach Fork Truck

3000kg 48V CQD30BS 3.0T Electric Reach forklift truck stand type triplex 3-6m mast

Main information:

Curtis AC controller

AC lift and drive motor

Lift height 3m to 6m

Lead acid battery 24V/2810AH

Stand type

The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.

Motor current detection control

Prevent the motor from being damaged due to excessive motor current.

Electromagnetic brake and hydraulic brake

combination of electromagnetic braking and hydraulic braking, short braking distance, no deviation, no impact, safe and reliable.

Parking electromagnetic brake

It can realize one-button operation function either on the ramp and smooth ground.

Item	Model		CQD30BS-30
1	Power type		Electric
2	Drive mode		Standing Type
3	Load capacity	Q(kg)	3000
4	Load center	C(mm)	500
5	Wheel base	Y(mm)	1770
6	Reach distance	L(mm)	610
7	Self weight with battery	kg	3850
8	Tire type		Pu solid tire
9	Front tire size	∅×w(mm)	280*135
10	Rear tire size	∅×w(mm)	382*142
11	Balance wheel size	∅×w(mm)	180*76
12	Track width, front wheels	b10(mm)	1330
13	Height-Mast lowered	h1(mm)	2280
14	Free Lift Height	h2(mm)	0
15	Lift Height	h3(mm)	3000
16	The maximum height of the gantry during homework	h4(mm)	3945
17	The height of overhead guards	h14(mm)	2305
18	The height when fork lowered	h13(mm)	45
19	Tilt-Forward/Back	α/β(°)	3/5
20	Overall length without forks/with forks	l2(mm)	2150/2640
21	Width of the body	b1(mm)	1460
22	Fork Dimensions	s/e/l(mm)	45/125/1070
23	Fork Spread	b5(mm)	244-820
24	Min ground clearance	m2(mm)	80
25	Aisle Width,pallet 1000*1200mm	Ast(mm)	3220
26	Min. Turning radius	Wa(mm)	2200
27	Max.walking speed	km/h	8/7
28	Max. lifting speed	m/s	0.240/0.170
29	Max. lowing speed	m/s	0.300/0.380
30	Grade Ability	％	≤8
31	Drive brake		electromagnetic
32	Drive motor	kw	8
33	Lift motor	kw	12
34	Battery type		Lead acid
35	Battery capacity	V/Ah	48V400Ah
36	Charger	V/Ah	48V/50A
37	DriveControllingType		alternating current
38	The noise level in the driver's ear according to EN12053	dB(A)	75
